• XP1 pedalset, throttle and brake.
  • XP1 pedalset, with throttle, brake and clutch.
  • XP1 loadcell brake pedal, 200kg of force.
  • XP1 throttle pedal.
  • XP1 clutch pedal.
  • XP1 pedalset, throttle, brake and clutch pedals. Black version.
1 6

Pedal Set XP1 Loadcell

Pedal Set XP1 Loadcell

The XP1 Loadcell Pedal Set boasts a proprietary 200 kg loadcell design, delivering up to 100 kg of brake pedal pressure. Its aluminum construction ensures exceptional durability, while hall-sensor technology minimizes wear on key components. The set includes a variety of elastomers and springs, allowing users to customize the pedal feel to suit any preference.

Type
$399.00
$399.00
Sale Sold out

Instruction Manual

Pedal Set XP1 Loadcell: Download

View full details

Extra

High-Performance Pedals for Sim Racing Mastery

High-Performance Pedals for Sim Racing Mastery

Introducing the Sim-Lab XP1 100KG Loadcell Pedal Set! Simulate any pedal of any car with the most complete sim-racing pedal set available. Carefully crafted to satisfy the needs of serious sim racing enthusiasts, this top-notch and fully customizable pedal set is designed to take your on-track performance to new heights. Experience the thrill of absolute control, immerse yourself in the authenticity of sim racing, and unleash your true racing potential with the Sim-Lab XP1 100KG Loadcell Pedal Set. It's time to elevate your racing experience and leave your competitors in the dust.

Highlights Pedal Set ...

  • Ultra precise brake-pedal input
  • Adjustable resistance, pre-load and pedal angle
  • Full-metal Construction
  • Fully customizable with RaceDirector®

Highlights

  • Ultra precise brake-pedal input
  • Adjustable resistance, pre-load and pedal angle
  • Full-metal Construction
  • Fully customizable with RaceDirector®

High-Performance Pedals for Sim Racing Mastery

Introducing the Sim-Lab XP1 100KG Loadcell Pedal Set! Simulate any pedal of any car with the most complete sim-racing pedal set available. Carefully crafted to satisfy the needs of serious sim racing enthusiasts, this top-notch and fully customizable pedal set is designed to take your on-track performance to new heights. Experience the thrill of absolute control, immerse yourself in the authenticity of sim racing, and unleash your true racing potential with the Sim-Lab XP1 100KG Loadcell Pedal Set. It's time to elevate your racing experience and leave your competitors in the dust.

XP1 throttle and brake sim racing pedal

Brake-input Mastery

The XP1's core is defined by its brake precision and carefully designed loadcell, which provides a 16-bit analog input for unmatched precision. The innovative in-line placement of this loadcell facilitates superior control and brake accuracy, encouraging you to break boundaries and attain outstanding performance.

XP1 throttle and brake pedal configuration

Extensive Adjustability

Whether you like a firm formula style pedal spaced far apart or you prefer a softer street pedal spaced perfectly for heel and toeing, this pedal set will meet your needs. An adjustable pre-load spring combined with various included dampers allows you to tweak the pedal feel from extremely soft to highly firm and responsive. Flexible mounting and adjustable pedal angle allow for perfect pedal placement.

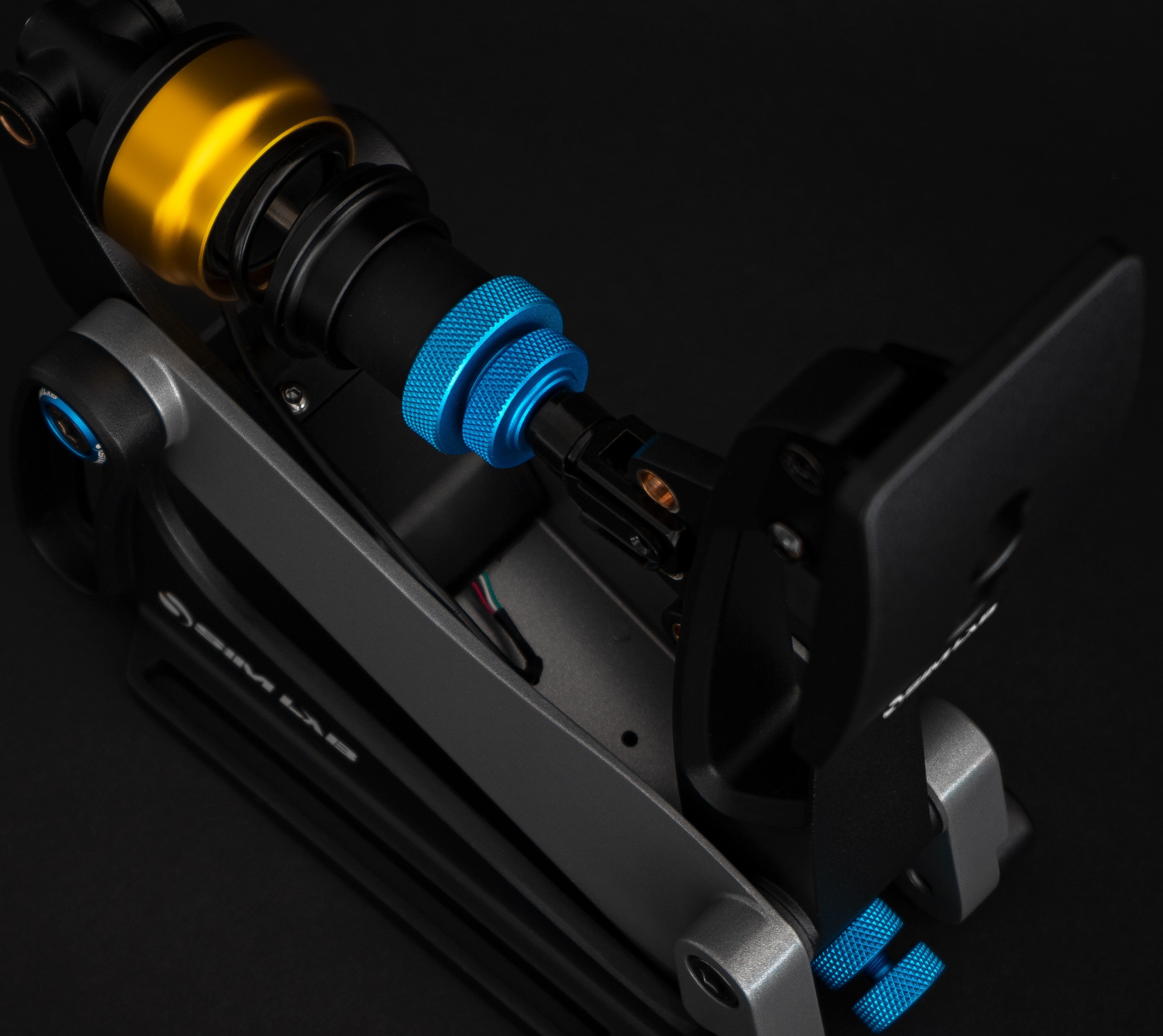

The XP1 brake pedal loadcell

Dual-Stage Damper

The brake pedal holds pivotal importance in racing. Our specially designed 100 Kg in-line loadcell provides exceptional control over the pedal at every corner phase. Whether it's the initial brake application, brake fade mitigation, or trail braking, the XP1 delivers superior performance in all aspects of corner entry.

XP1 sim racing pedals with the full-metal construction

Full-Metal Construction

Chasing ultimate reliability, the XP1 has been crafted with a robust full-metal construction and a refined, yet simple design. The XP1 sets a new standard for price-quality ratio in the market. Its durability and reliability guarantee longevity and stability, even during the most intense racing sessions. You can trust that this pedal set will withstand the rigors of your virtual racing adventures.

  • 200kg load cell transfers to 100kg pedal pressure
  • Easy to swap elastomers and springs
  • Adjustable stiffness and initial first-stage compression
  • Hall Sensor technology (no wear)
  • Swappable springs for different throttle stiffness (spring tension)
  • Adjustable bite-point
  • Hall Sensor technology (no wear)
  • Swappable spring and adjustable spring tension
  • Mounts on virtually any pedal deck

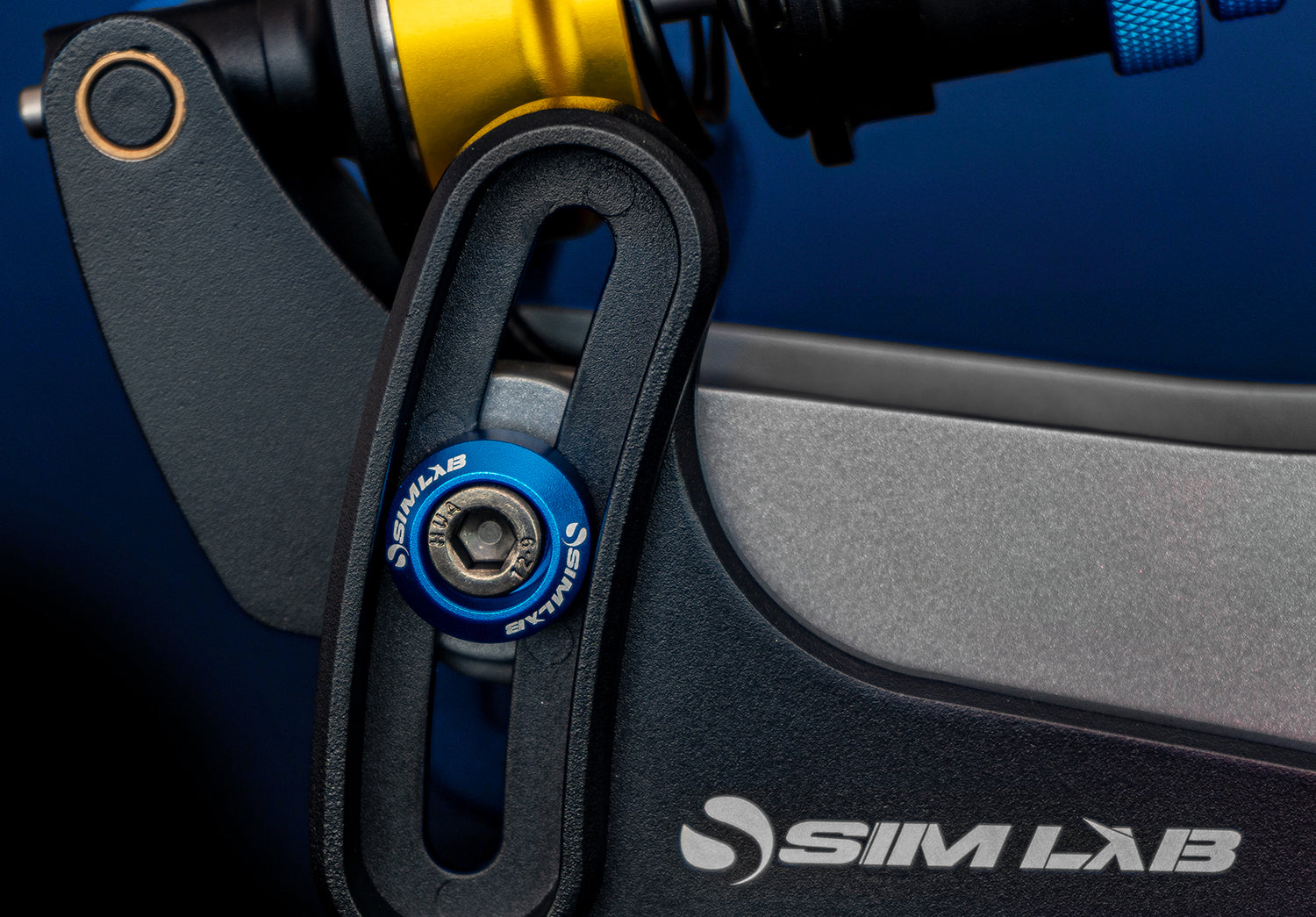

  • The inclination of the pedal is easily adjustable
  • Blue color illustrates adjustability

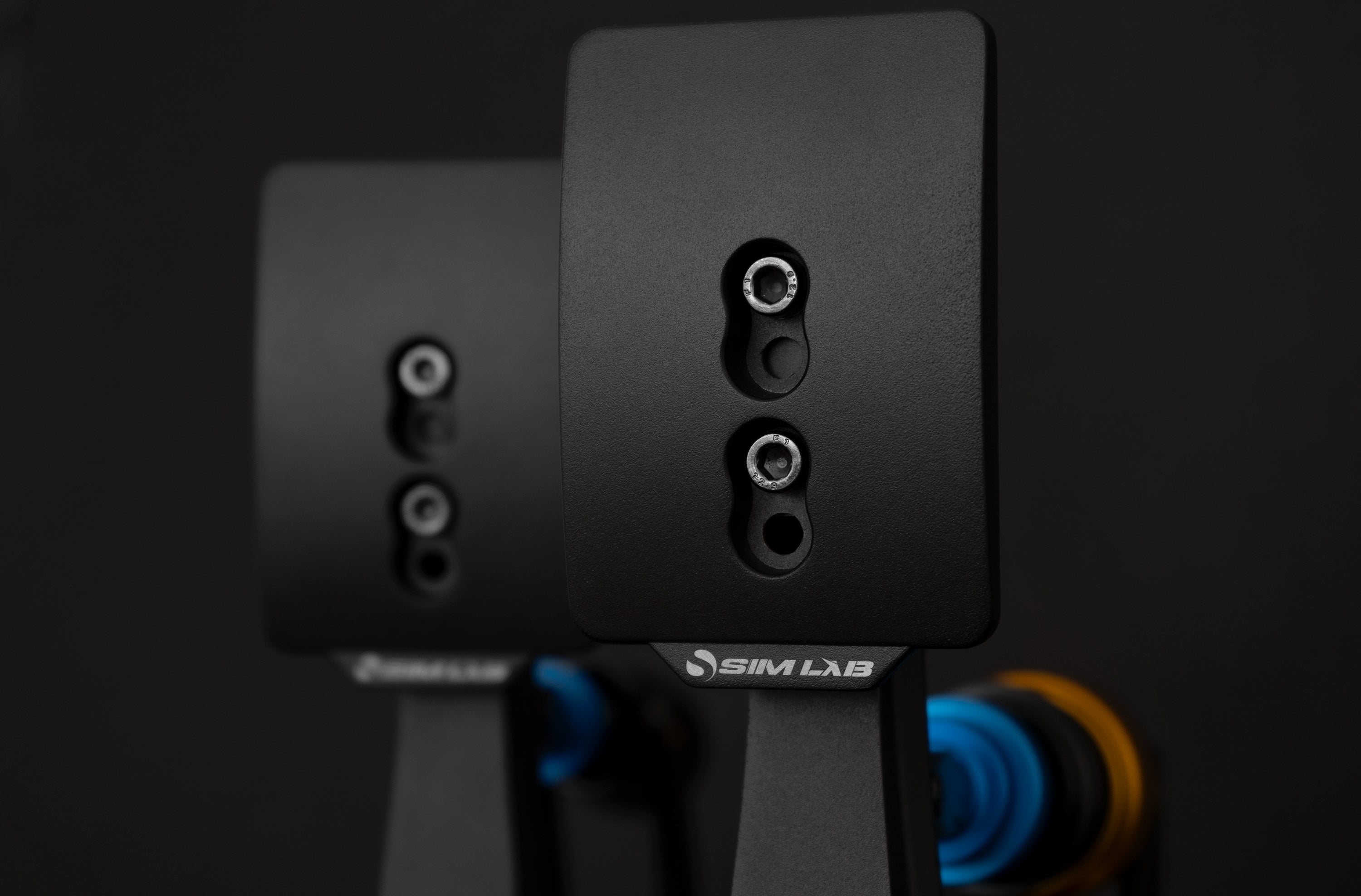

  • Pedal face is adjustable in height and angle
  • Swappable pedal face
  • Real ball bearings in the pedal arm
  • Strong full metal construction
  • Pedal position free of constraint
  • Pedal maximum travel is adjustable
